Architectural step lighting
CE-170100Sensor Step Light
CE-170100 3 W step light with motion sensor control and plaster-in recessed.
3 W
LED power
IP22
Ingress rating
Aluminium
Body material
Finish: Matte white
Pricing & samples
Request a quotation, sample or technical drawing.
Model CE-170100 Motion sensor SKU HXCE-170100-PIR
01 / Applications

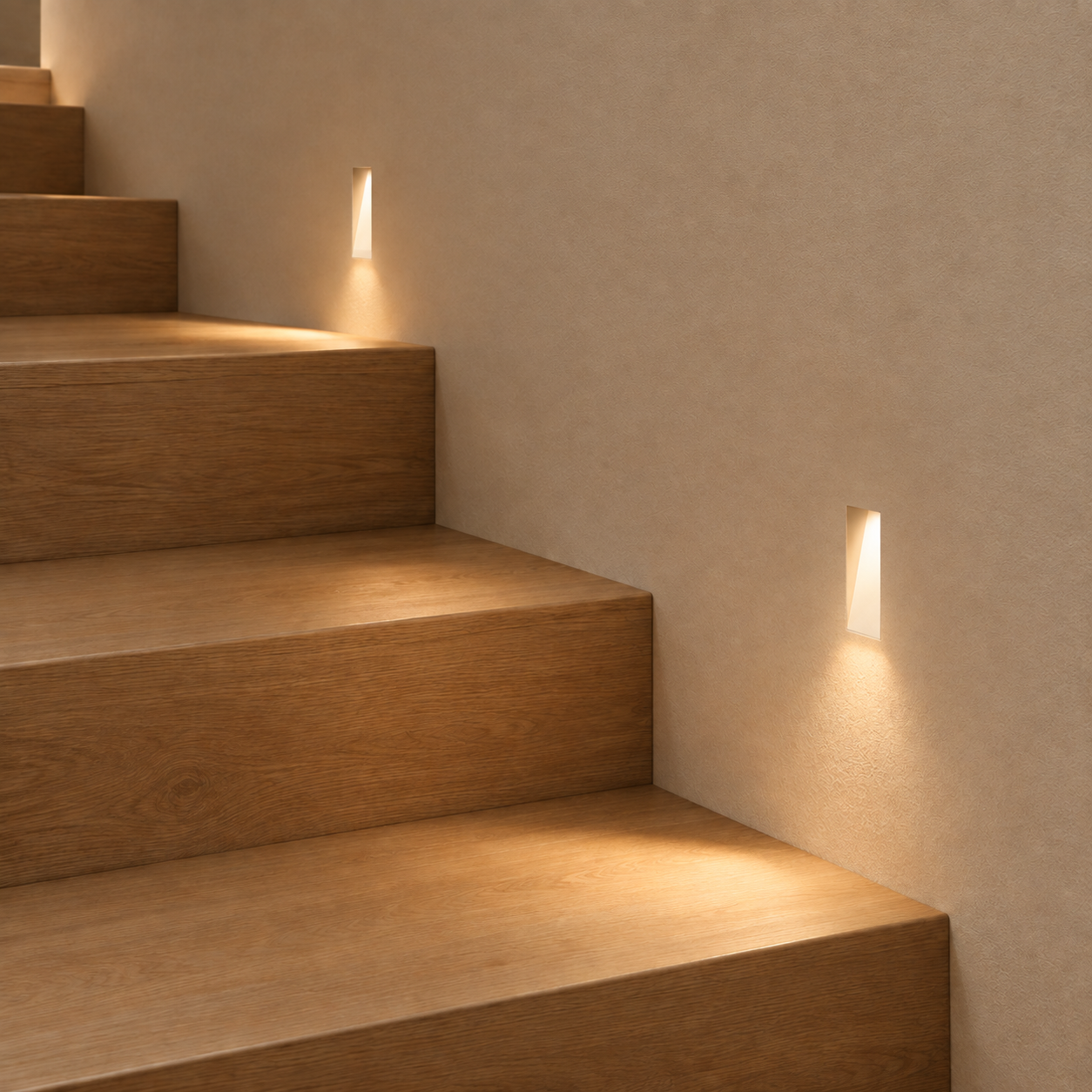

Stairway lighting
A seamless plaster finish
The mounting flange sits beneath the plaster, leaving the light aperture integrated into the wall.
- Motion sensor
- Plaster-in recessed
- Plaster-in frame
- Trimless wall finish
02 / Material & finishes
Available finishes
Aluminium · Plaster-in recessed
Technical details
Dimensions & specifications
CE-170100
3 W
LED power
IP22
Ingress rating
80
Colour rendering · CRI
1
Finish
Product dimensions
Dimensions in mm
Front profile
170 × 100 mm
Side profile
51 mm deep
Wall cut-out
143 × 48 × 52 mm
| Power | 3 W |
|---|---|
| Input voltage | 110–240 V |
| Colour temperature | 3000 / 4000 / 6000 K |
| Beam angle | 120° |
| CRI | 80 |
| Luminous flux | 85–130 lm |
| LED chip | Cree XTE 1 LED |
| Control | Motion sensor |
| Overall dimensions | 170 × 100 × 51 mm |
|---|---|
| Cut-out | 143 × 48 × 52 mm |
| Body material | Aluminium |
| Finishes | Matte white |
| Ingress rating | IP22 |
| Installation | Plaster-in recessed |
| Cable | 10 cm silicone cable |
| Features | Plaster-in frame; Trimless wall finish |
Installation
Plaster-in installation
- Mounting method
- Plaster-in frame
- Wall cut-out
- 143 × 48 × 52 mm
- Input voltage
- 110–240 V
Isolate the supply
Switch off the circuit before preparing the wiring. Electrical connections must be made by a qualified installer.
Prepare the wall recess
Use the wall cut-out dimensions listed above. Provide space for the housing and cable connection behind the finished wall.
Fit and connect the frame
Secure the plaster-in body in the recess and connect the luminaire before closing the wall.
Plaster over the flange
Cover the perforated mounting flange with the wall finish. Keep the optical opening and any sensor free of plaster and paint.
Test the installed light
Restore power and walk through the detection area to check automatic operation. Keep the sensor uncovered.
Request a CE-170100 quotation
Send your quantity, finish and colour temperature for pricing and lead time.
