CE-22080Switch Step Light
CE-22080 3 W step light with switch control and plaster-in recessed.
3 W
LED power
Aluminium
Body material
Finish: Matte white
Pricing & samples
Request a quotation, sample or technical drawing.
Model CE-22080 Switch controlled SKU HXCE-22080-SW
01 / Applications

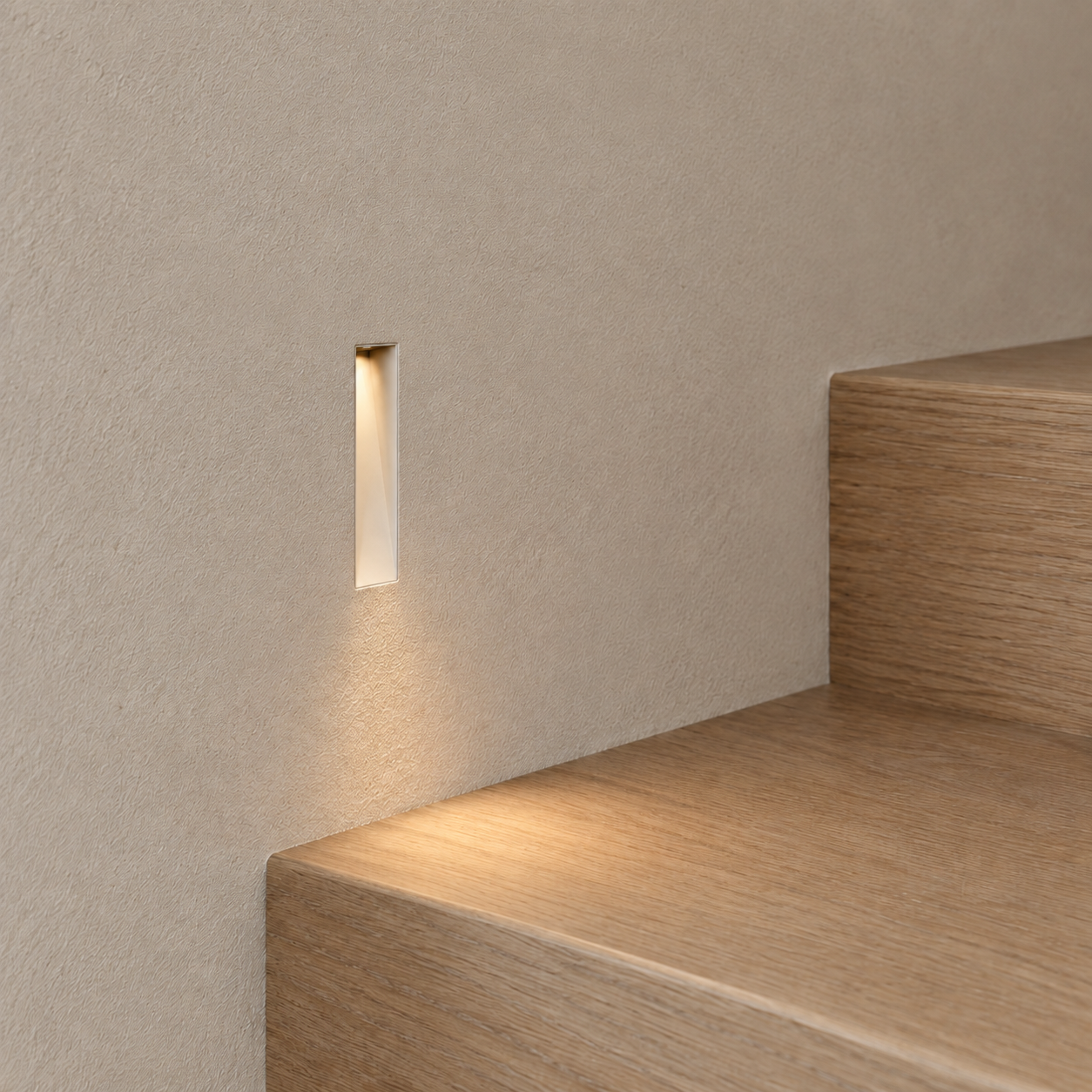

Stairway lighting
A seamless plaster finish
The mounting flange sits beneath the plaster, leaving the light aperture integrated into the wall.
- Switch controlled
- Plaster-in recessed
- Plaster-in frame
- Trimless wall finish
02 / Material & finishes
Available finishes
Aluminium · Plaster-in recessed
Technical details
Dimensions & specifications
CE-22080
3 W
LED power
80
Colour rendering · CRI
1
Finish
Product dimensions
Dimensions in mm
Front profile
220 × 80 mm
Side profile
50 mm deep
Wall cut-out
180 × 30 × 52 mm
| Power | 3 W |
|---|---|
| Input voltage | 110–240 V |
| Colour temperature | 3000 / 4000 / 6000 K |
| Beam angle | 90° |
| CRI | 80 |
| Luminous flux | 85–130 lm |
| LED chip | Cree XTE 1 LED |
| Control | Switch controlled |
| Overall dimensions | 220 × 80 × 50 mm |
|---|---|
| Cut-out | 180 × 30 × 52 mm |
| Body material | Aluminium |
| Finishes | Matte white |
| Installation | Plaster-in recessed |
| Cable | 10 cm silicone cable |
| Features | Plaster-in frame; Trimless wall finish |
Installation
Plaster-in installation
- Mounting method
- Plaster-in frame
- Wall cut-out
- 180 × 30 × 52 mm
- Input voltage
- 110–240 V
Isolate the supply
Switch off the circuit before preparing the wiring. Electrical connections must be made by a qualified installer.
Prepare the wall recess
Use the wall cut-out dimensions listed above. Provide space for the housing and cable connection behind the finished wall.
Fit and connect the frame
Secure the plaster-in body in the recess and connect the luminaire before closing the wall.
Plaster over the flange
Cover the perforated mounting flange with the wall finish. Keep the optical opening and any sensor free of plaster and paint.
Test the installed light
Restore power and operate the wall switch to check the light.
