Architectural step lighting
CE-8609Switch Step Light
CE-8609 1 W step light with switch control and recessed wall mounting.
1 W
LED power
IP22
Ingress rating
Polycarbonate
Body material
Finish: White
Pricing & samples
Request a quotation, sample or technical drawing.
Model CE-8609 Switch controlled SKU HXCE-8609-SW
01 / Applications

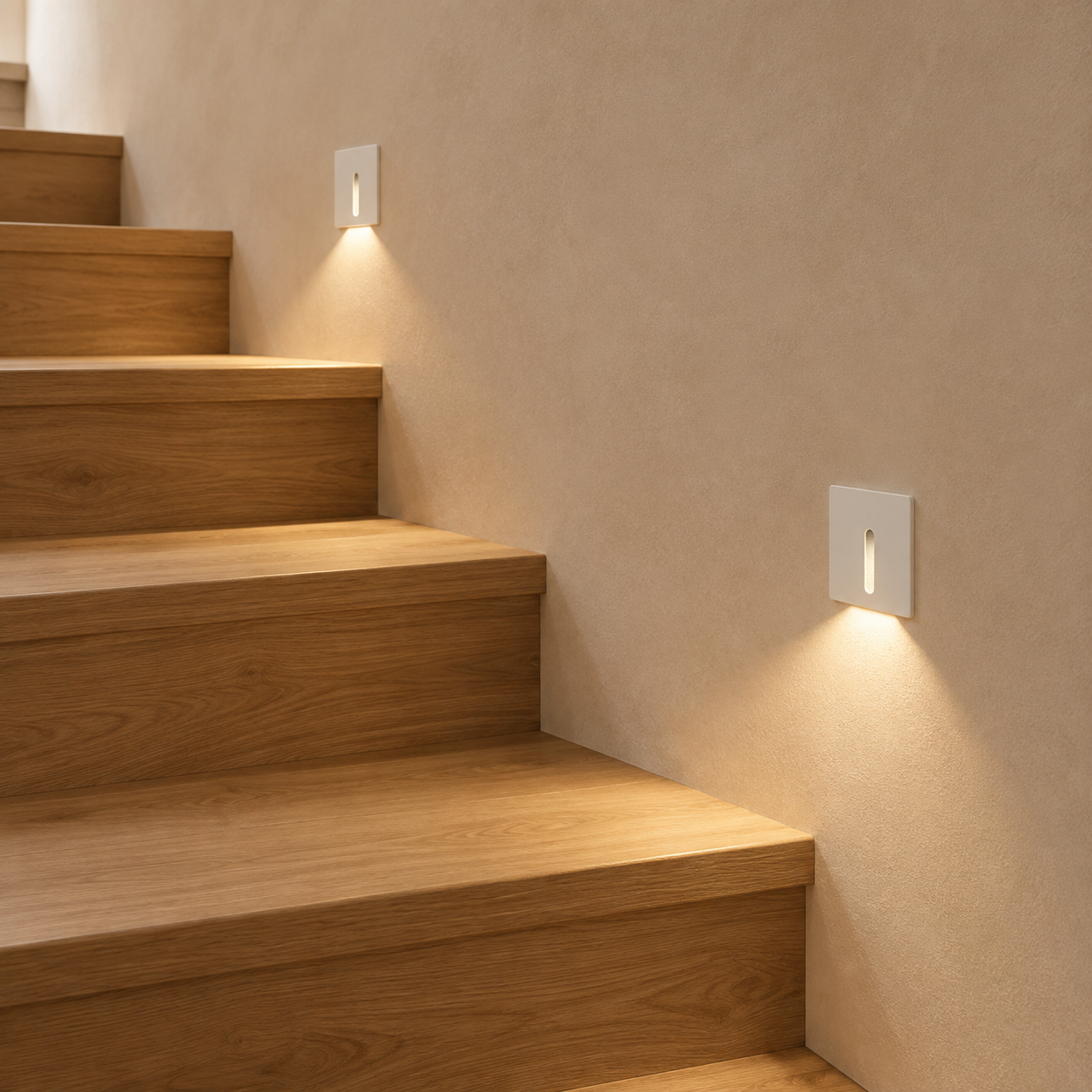

Stairway lighting
Low-level stairway lighting
The recessed housing sits inside the wall, with the faceplate framing the light aperture at the surface.
- Switch controlled
- Recessed wall mounting
- Back box sold separately
02 / Material & finishes
Available finishes
Polycarbonate · Recessed wall mounting
Technical details
Dimensions & specifications
CE-8609
1 W
LED power
IP22
Ingress rating
80
Colour rendering · CRI
4
Finishes
Product dimensions
Dimensions in mm
Front profile
86 × 86 mm
Side profile
34 mm deep
Wall cut-out
80 × 80 mm
| Power | 1 W |
|---|---|
| Input voltage | 110–240 V |
| Colour temperature | 3000 / 4000 / 6000 K |
| Beam angle | 45–120° |
| CRI | 80 |
| Luminous flux | 85–130 lm |
| LED chip | Tiandian |
| Control | Switch controlled |
| Overall dimensions | 86 × 86 × 34 mm |
|---|---|
| Cut-out | 80 × 80 mm |
| Body material | Polycarbonate |

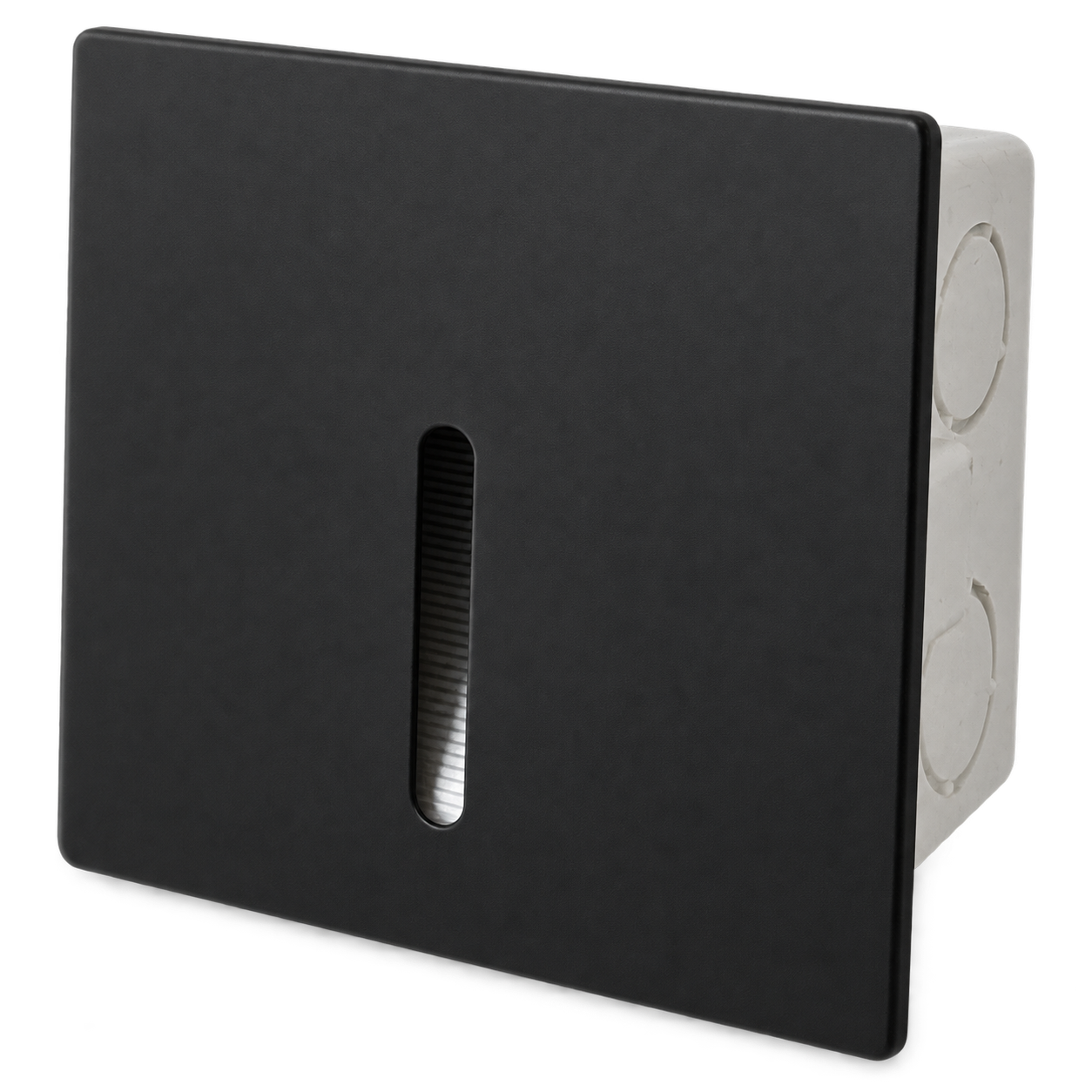

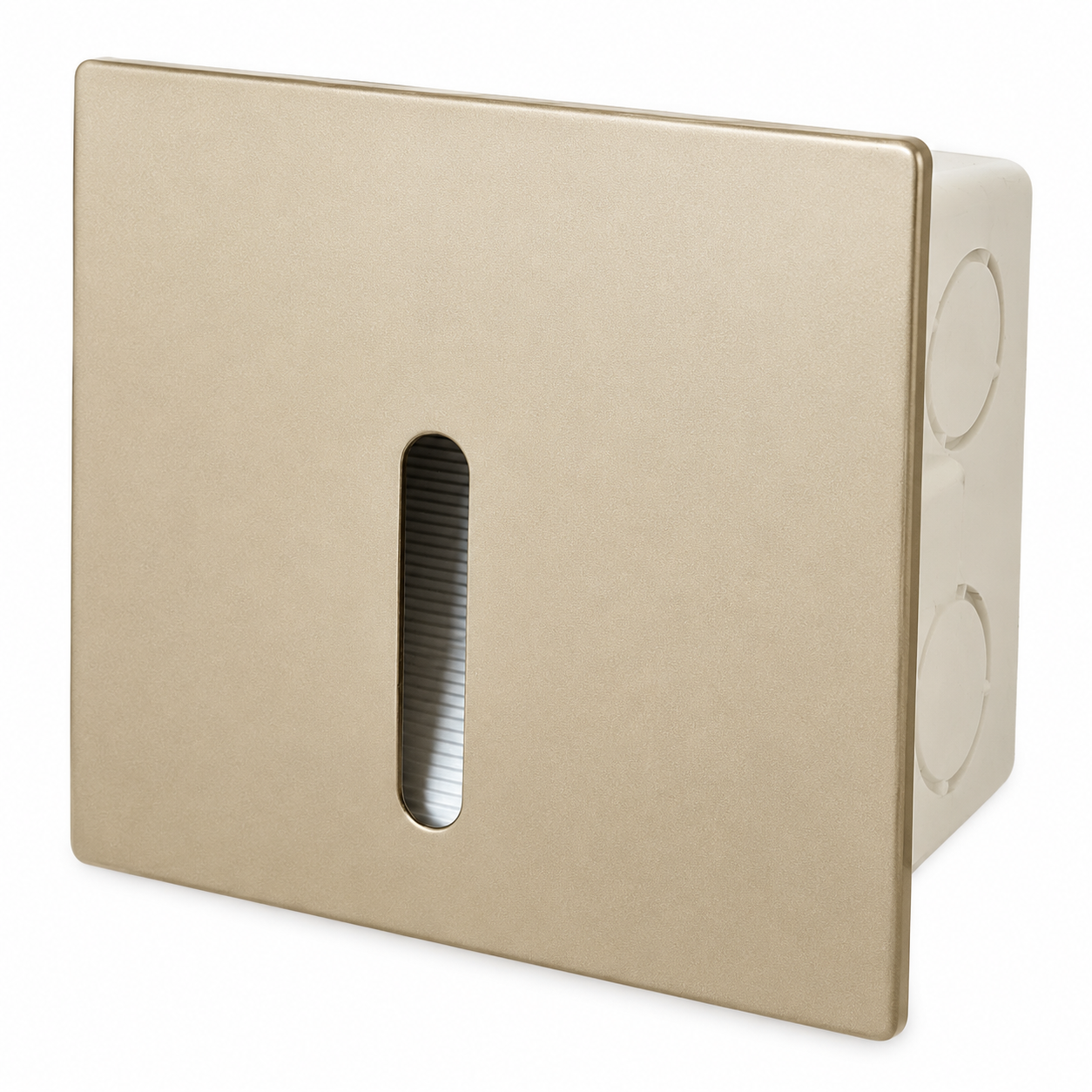

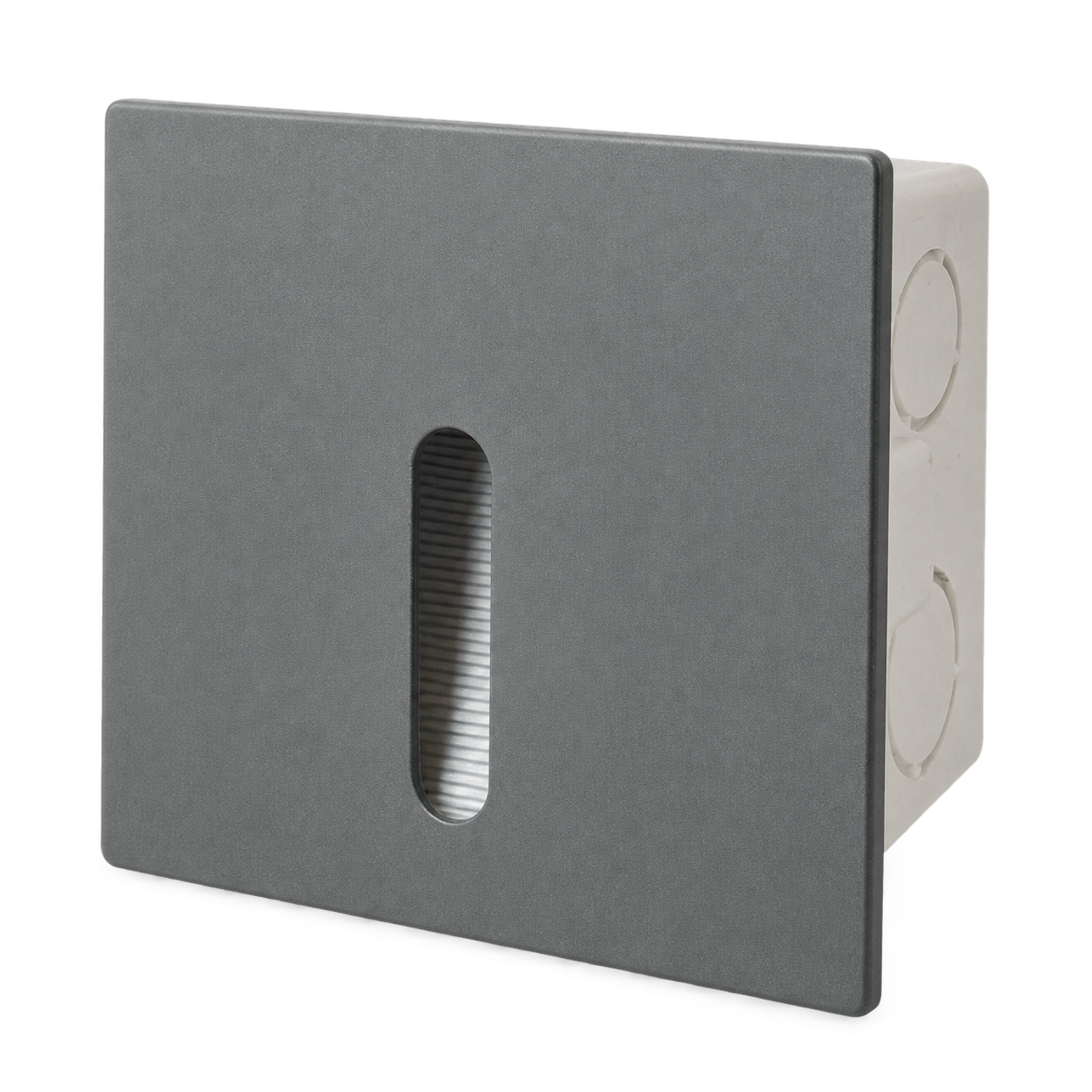

| Finishes | White / Black / Starry grey / Champagne gold |
| Ingress rating | IP22 |
| Installation | Recessed wall mounting |
| Cable | 12 cm silicone cable |
| Features | Back box sold separately |
Installation
Installation with a back box
- Mounting method
- Separate back box
- Wall cut-out
- 80 × 80 mm
- Input voltage
- 110–240 V
Isolate the supply
Switch off the circuit before preparing the wiring. Electrical connections must be made by a qualified installer.
Install the back box
Fit the matching back box into the wall recess. The back box is sold separately; use the wall cut-out dimensions listed above.
Connect the luminaire
Use the input voltage listed above. Make the electrical connections with the supply isolated and keep the cable clear of the mounting surfaces.
Fit the light to the box
Secure the light in the back box with the mounting hardware for the fixture. Seat the faceplate against the finished wall.
Test the installed light
Restore power and operate the wall switch to check the light.
Request a CE-8609 quotation
Send your quantity, finish and colour temperature for pricing and lead time.
