Architectural step lighting
CE-CDF01Rechargeable Sensor Step Light
CE-CDF01 rechargeable sensor wall light with 5 V DC charging and magnetic mounting.
IP22
Ingress rating
Polycarbonate
Body material
Finish: White
Pricing & samples
Request a quotation, sample or technical drawing.
Model CE-CDF01 Motion sensor SKU HXCE-CDF01
01 / Applications

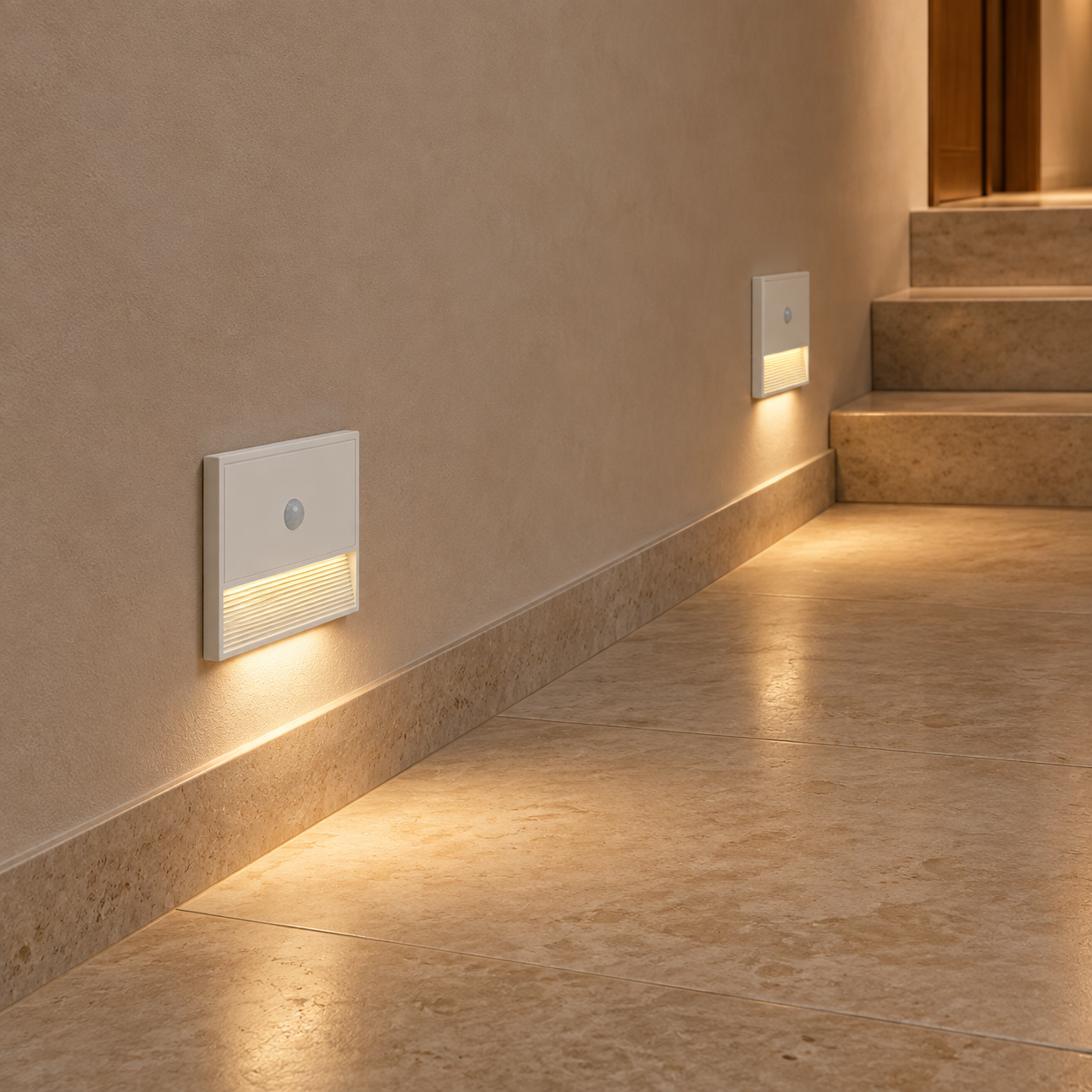

Stairway lighting
Rechargeable wall lighting
The built-in battery charges from a 5 V DC supply. A magnetic mount lets you remove the light for charging.
- Motion sensor
- Magnetic surface mounting
02 / Material & finishes
Available finishes
Polycarbonate · Magnetic surface mounting
Technical details
Dimensions & specifications
CE-CDF01
IP22
Ingress rating
80
Colour rendering · CRI
2
Finishes
Product dimensions
Dimensions in mm
Front profile
86 × 86 mm
| Charging input | 5 V DC |
|---|---|
| Power supply | Built-in rechargeable battery |
| Colour temperature | 3000 / 4000 / 6000 K |
| Beam angle | 160° |
| CRI | 80 |
| Luminous flux | 85–130 lm |
| LED chip | Osram |
| Control | Motion sensor |
| Overall dimensions | 86 × 86 mm |
|---|---|
| Cut-out | Not required |
| Body material | Polycarbonate |

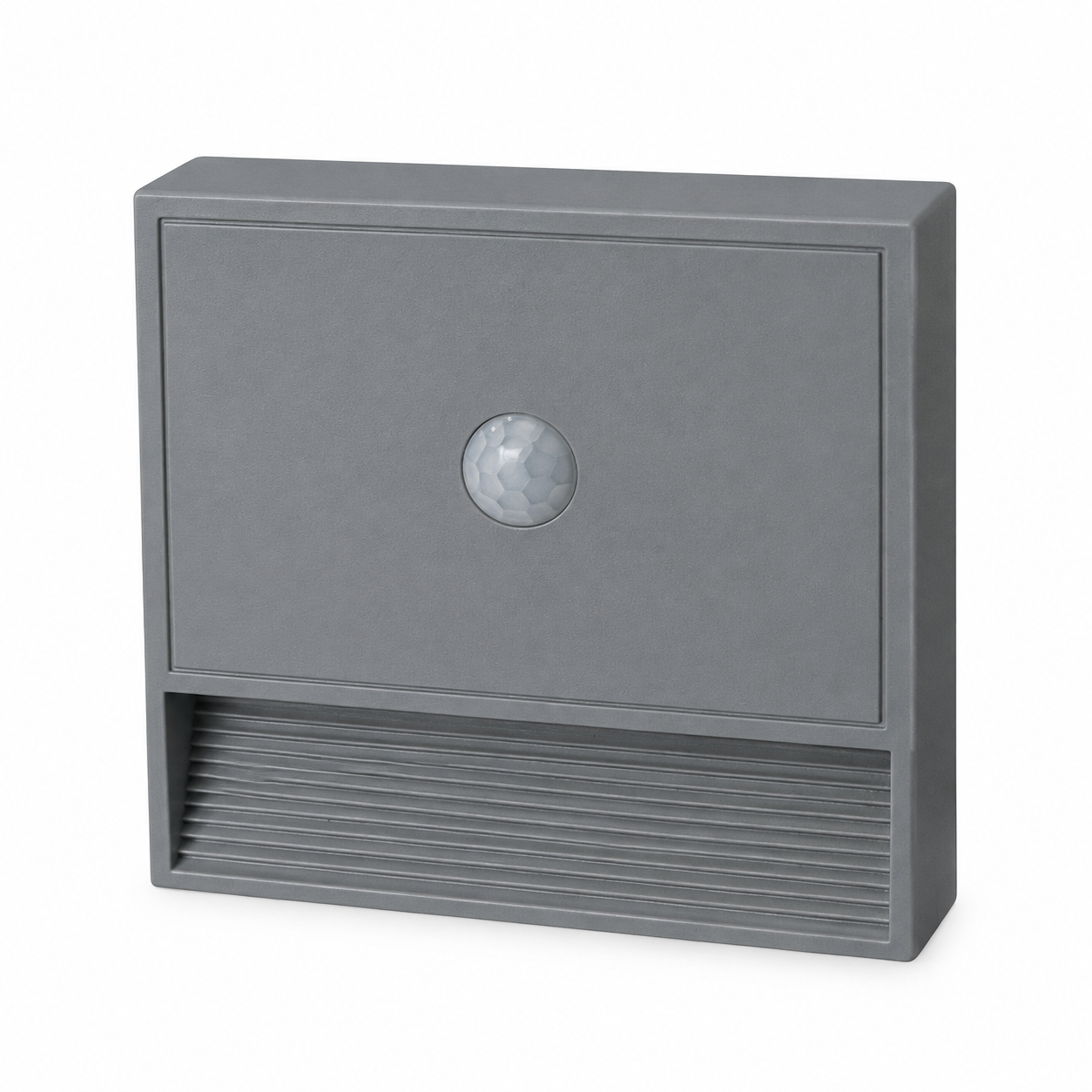

| Finishes | White / Starry grey |
| Ingress rating | IP22 |
| Installation | Magnetic surface mounting |
| Features | Built-in rechargeable battery; 5 V DC charging; Magnetic wall mounting |
Installation
Magnetic mounting & charging
- Mounting method
- Magnetic battery mount
- Wall cut-out
- Not required
- Charging input
- 5 V DC
Charge the battery
Remove the light from its magnetic mount and charge it from a 5 V DC supply.
Fit the magnetic mount
Attach the magnetic mounting base at the chosen position on the wall.
Attach and check the light
Place the light on its magnetic mount and check sensor operation at the intended approach.
Request a CE-CDF01 quotation
Send your quantity, finish and colour temperature for pricing and lead time.
