Architectural step lighting
CE-CX8603Sensor Step Light
CE-CX8603 3 W step light with motion sensor control and recessed wall mounting.
3 W
LED power
IP65
Ingress rating
Aluminium
Body material
Finish: Matte white
Pricing & samples
Request a quotation, sample or technical drawing.
Model CE-CX8603 Motion sensor SKU HXCE-CX8603-PIR
01 / Applications

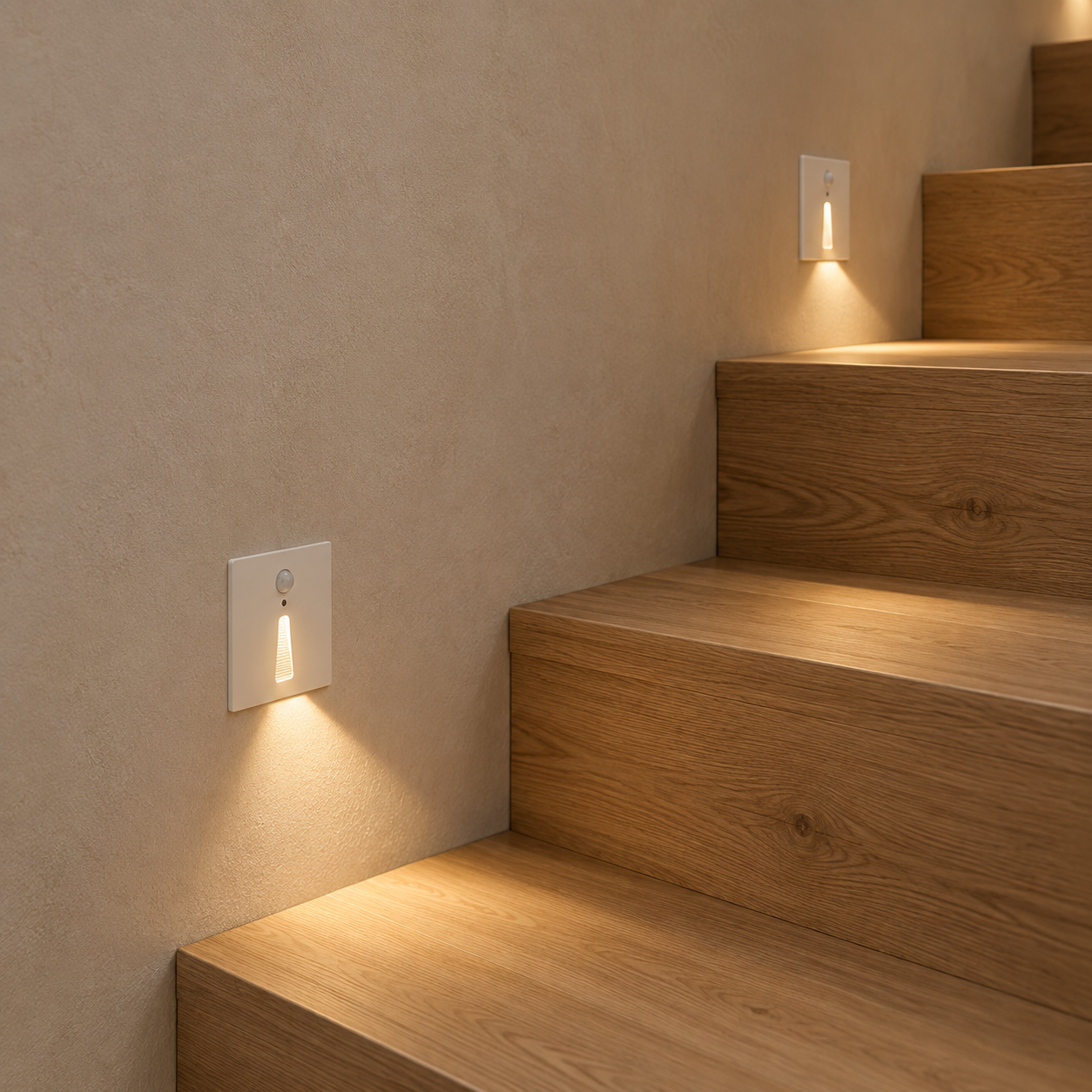

Stairway lighting
Sensor-controlled lighting
Motion sensor control operates the light automatically. The recessed housing keeps the faceplate close to the wall.
- Motion sensor
- Recessed wall mounting
- Back box sold separately
02 / Material & finishes
Available finishes
Aluminium · Recessed wall mounting
Technical details
Dimensions & specifications
CE-CX8603
3 W
LED power
IP65
Ingress rating
80
Colour rendering · CRI
3
Finishes
Product dimensions
Dimensions in mm
Front profile
86 × 86 mm
Side profile
30 mm deep
Wall cut-out
75 × 75 mm
| Power | 3 W |
|---|---|
| Input voltage | 110–240 V |
| Colour temperature | 3000 / 4000 / 6000 K |
| Beam angle | 45–120° |
| CRI | 80 |
| Luminous flux | 85–130 lm |
| LED chip | Cree XTE 1 LED |
| Control | Motion sensor |
| Overall dimensions | 86 × 86 × 30 mm |
|---|---|
| Cut-out | 75 × 75 mm |
| Body material | Aluminium |

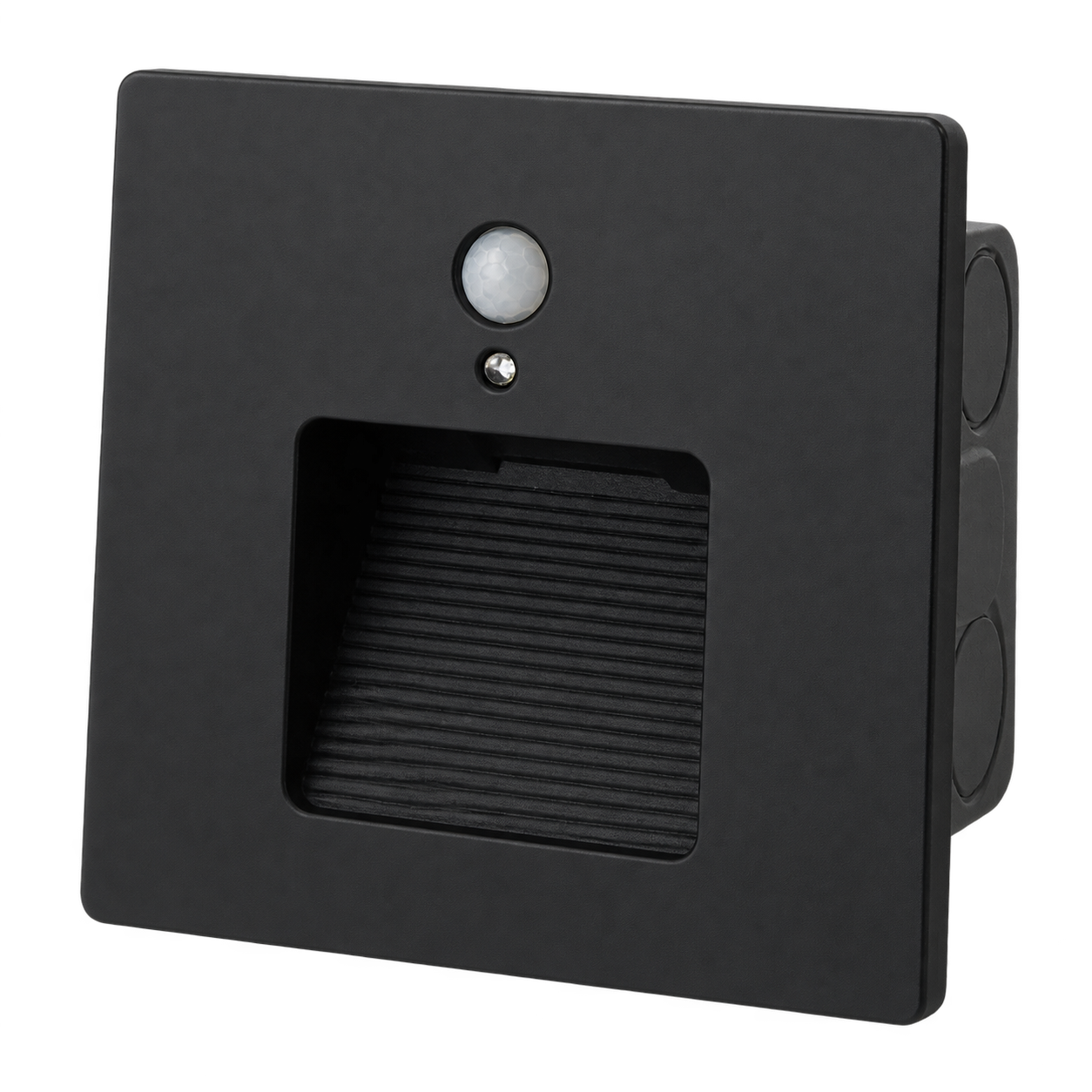

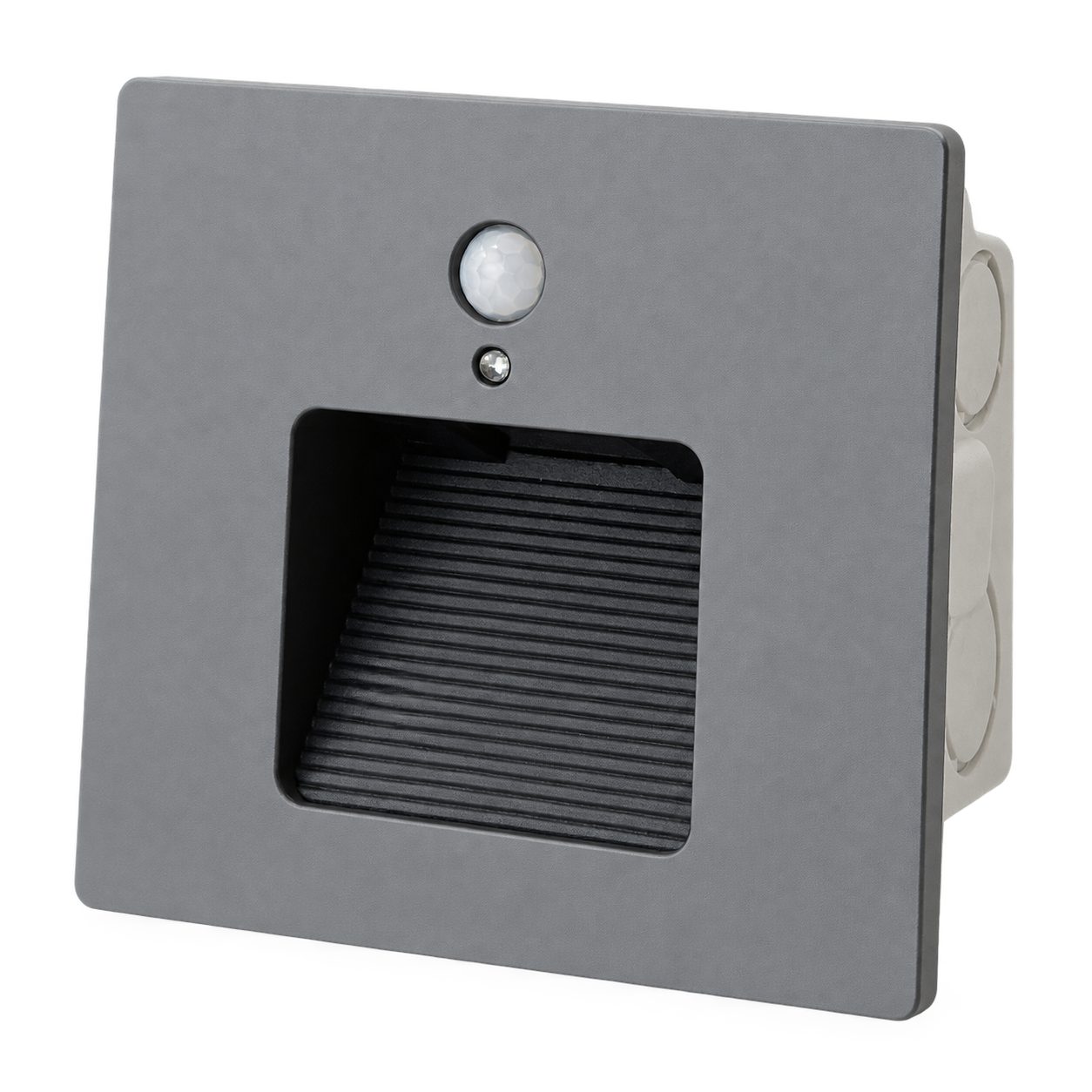

| Finishes | Matte white / Matte black / Matte grey |
| Ingress rating | IP65 |
| Installation | Recessed wall mounting |
| Cable | 15 cm silicone cable |
| Features | Back box sold separately |
Installation
Installation with a back box
- Mounting method
- Separate back box
- Wall cut-out
- 75 × 75 mm
- Input voltage
- 110–240 V
Isolate the supply
Switch off the circuit before preparing the wiring. Electrical connections must be made by a qualified installer.
Install the back box
Fit the matching back box into the wall recess. The back box is sold separately; use the wall cut-out dimensions listed above.
Connect the luminaire
Use the input voltage listed above. Make the electrical connections with the supply isolated and keep the cable clear of the mounting surfaces.
Fit the light to the box
Secure the light in the back box with the mounting hardware for the fixture. Seat the faceplate against the finished wall.
Test the installed light
Restore power and walk through the detection area to check automatic operation. Keep the sensor uncovered.
Request a CE-CX8603 quotation
Send your quantity, finish and colour temperature for pricing and lead time.
