Architectural step lighting
CE-CX8611Magnetic Switch Step Light
CE-CX8611 3 W step light with switch control and magnetic faceplate / recessed.
3 W
LED power
IP65
Ingress rating
3
Finishes
Finish: Matte white
Pricing & samples
Request a quotation, sample or technical drawing.
Model CE-CX8611 Switch controlled SKU HXCE-CX8611-MAG--SW
01 / Applications

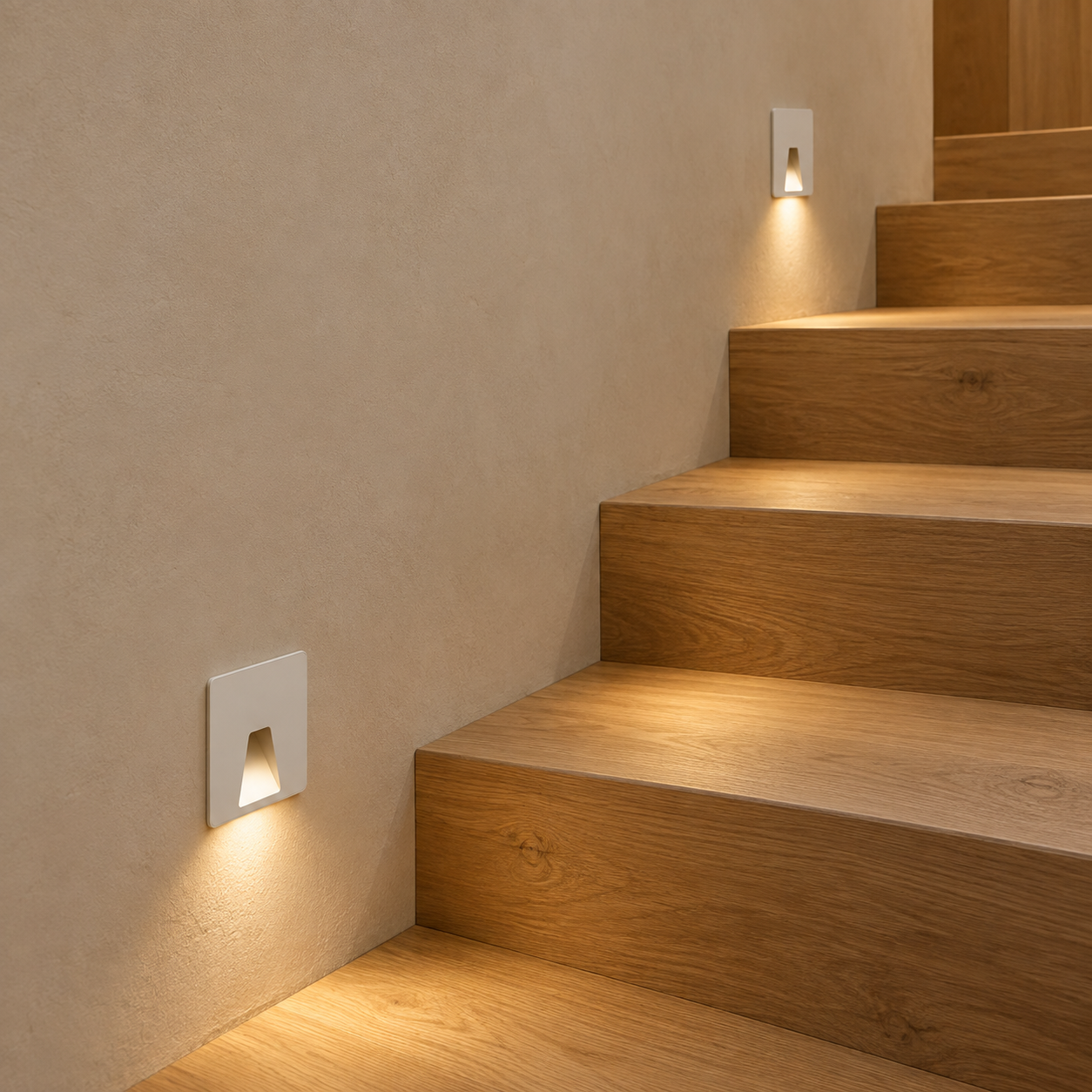

Stairway lighting
Low-level stairway lighting
The recessed housing sits inside the wall, with the faceplate framing the light aperture at the surface.
- Switch controlled
- Magnetic faceplate / recessed
- Magnetic removable faceplate
- Fits 86 mm and EU back boxes
02 / Material & finishes
Available finishes
Magnetic faceplate / recessed
Technical details
Dimensions & specifications
CE-CX8611
3 W
LED power
IP65
Ingress rating
80
Colour rendering · CRI
3
Finishes
Product dimensions
Dimensions in mm
Front profile
85 × 85 mm
Side profile
30 mm deep
Wall cut-out
80 × 80 × 50 mm
| Power | 3 W |
|---|---|
| Input voltage | 110–240 V |
| Colour temperature | 3000 / 4000 / 6000 K |
| Beam angle | 45–120° |
| CRI | 80 |
| Luminous flux | 85–130 lm |
| LED chip | Cree XTE 1 LED |
| Control | Switch controlled |
| Overall dimensions | 85 × 85 × 30 mm |
|---|---|
| Cut-out | 80 × 80 × 50 mm |

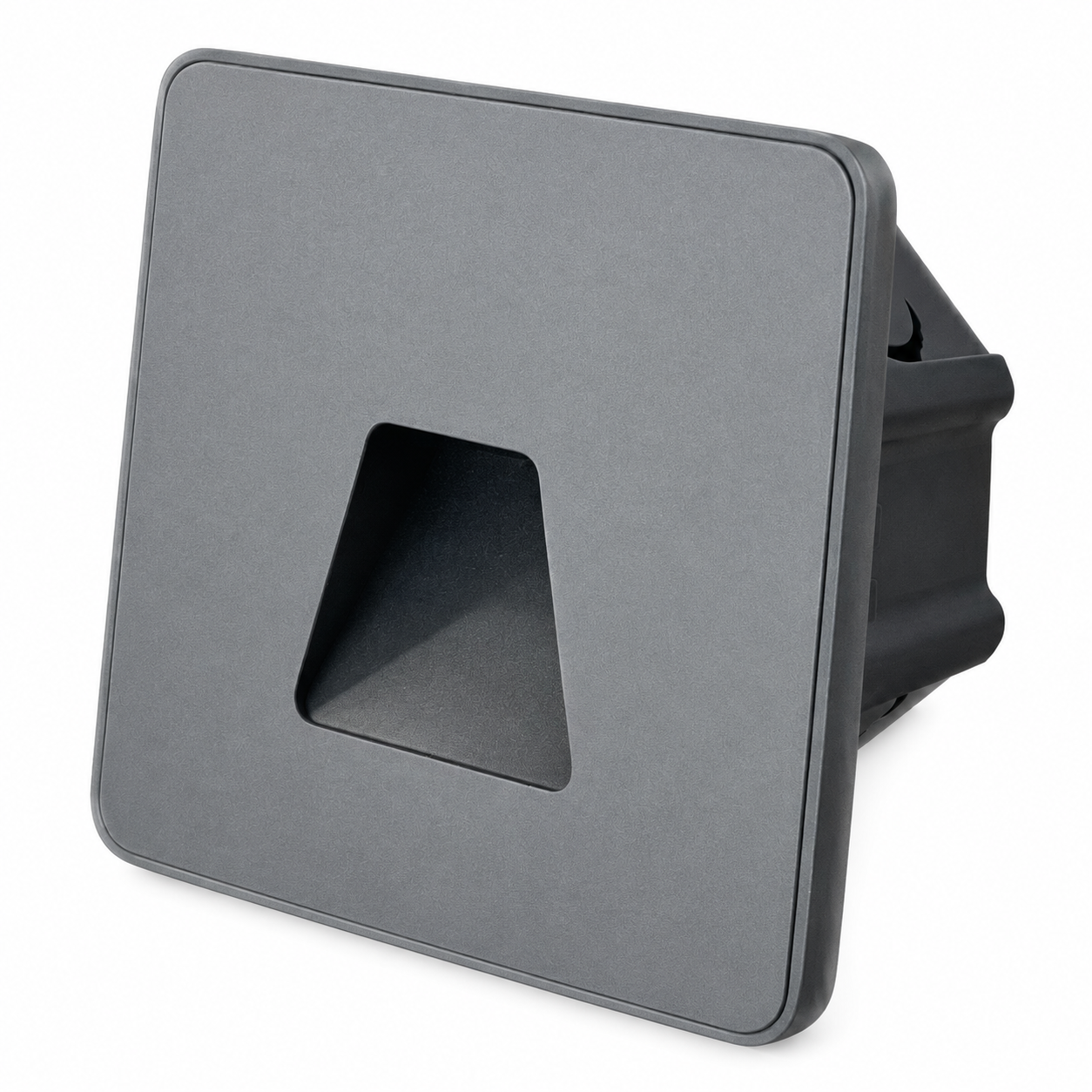

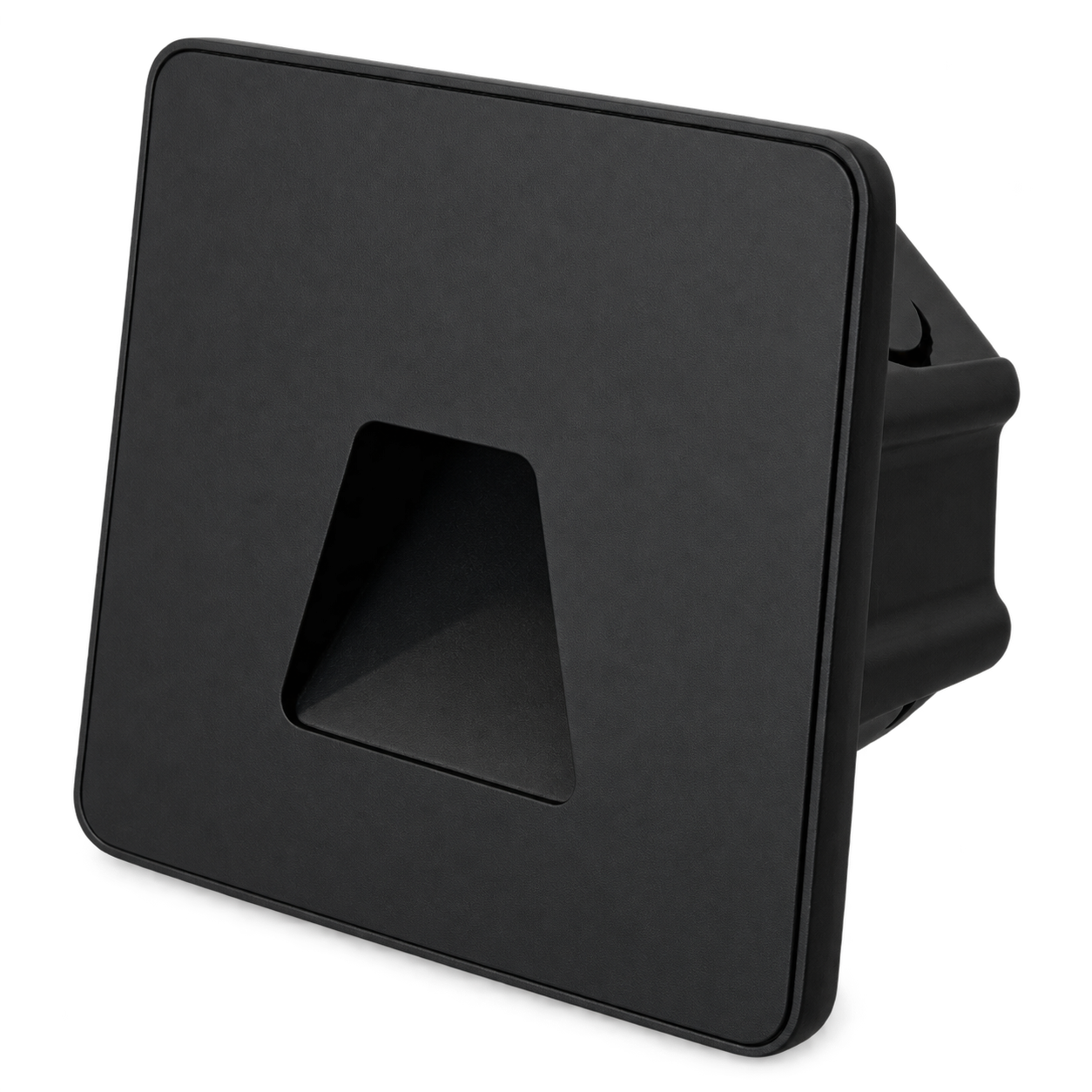

| Finishes | Matte white / Matte black / Matte grey |
| Ingress rating | IP65 |
| Installation | Magnetic faceplate / recessed |
| Cable | 15 cm silicone cable |
| Features | Magnetic removable faceplate; Fits 86 mm and EU back boxes |
Installation
Recessed installation with a magnetic faceplate
- Mounting method
- Magnetic faceplate
- Wall cut-out
- 80 × 80 × 50 mm
- Input voltage
- 110–240 V
Isolate the supply
Switch off the circuit before preparing the wiring. Electrical connections must be made by a qualified installer.
Prepare the back box
Use a compatible 86 mm or EU back box. Check the available recess space against the dimensions listed above.
Connect the luminaire
Use the input voltage listed above. Make the electrical connections with the supply isolated and keep the cable clear of the mounting surfaces.
Fit the housing and faceplate
Secure the recessed housing, then attach the removable magnetic faceplate. Keep the light aperture clear.
Test the installed light
Restore power and operate the wall switch to check the light.
Request a CE-CX8611 quotation
Send your quantity, finish and colour temperature for pricing and lead time.
