Architectural step lighting
CE-HMF86Switch Step Light
CE-HMF86 3 W/6 W step light with switch control and surface mounted.
3 W/6 W
LED power
IP65
Ingress rating
3
Finishes
Finish: Matte white
Pricing & samples
Request a quotation, sample or technical drawing.
Model CE-HMF86 Switch controlled SKU HXCE-HMF86-SW
01 / Applications

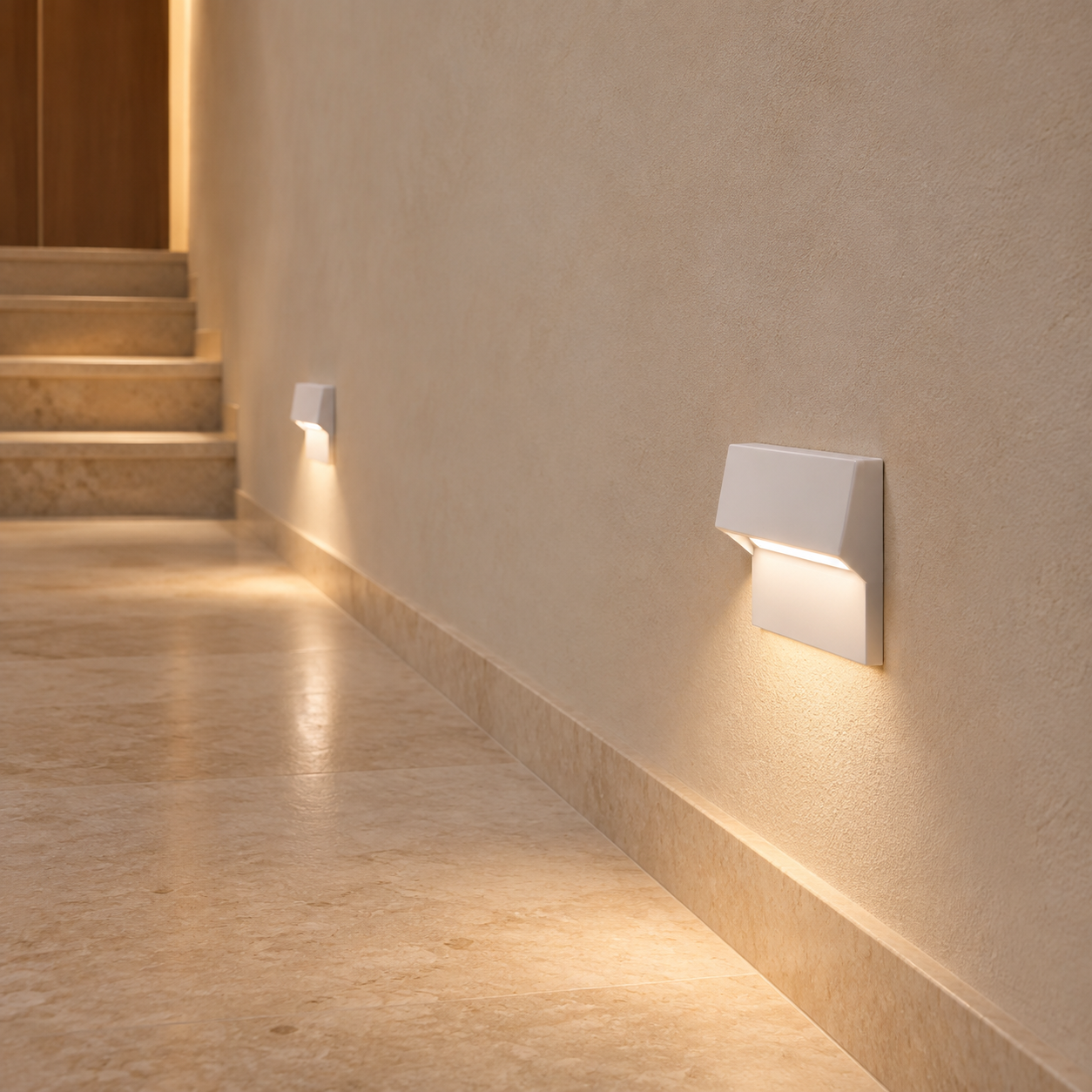

Stairway lighting
Light without a wall recess
The fixture mounts onto the wall surface, without a cut-out for a recessed housing.
- Switch controlled
- Surface mounted
02 / Material & finishes
Available finishes
Surface mounted
Technical details
Dimensions & specifications
CE-HMF86
3 W/6 W
LED power
IP65
Ingress rating
80
Colour rendering · CRI
3
Finishes
Surface mounting
No wall cut-out required.
| Power | 3 W/6 W |
|---|---|
| Input voltage | 110–240 V |
| Colour temperature | 3000 / 4000 / 6000 K |
| Beam angle | 160° |
| CRI | 80 |
| Luminous flux | 85–130 lm |
| LED chip | Osram / Sanan |
| Control | Switch controlled |
| Cut-out | Not required |
|---|---|

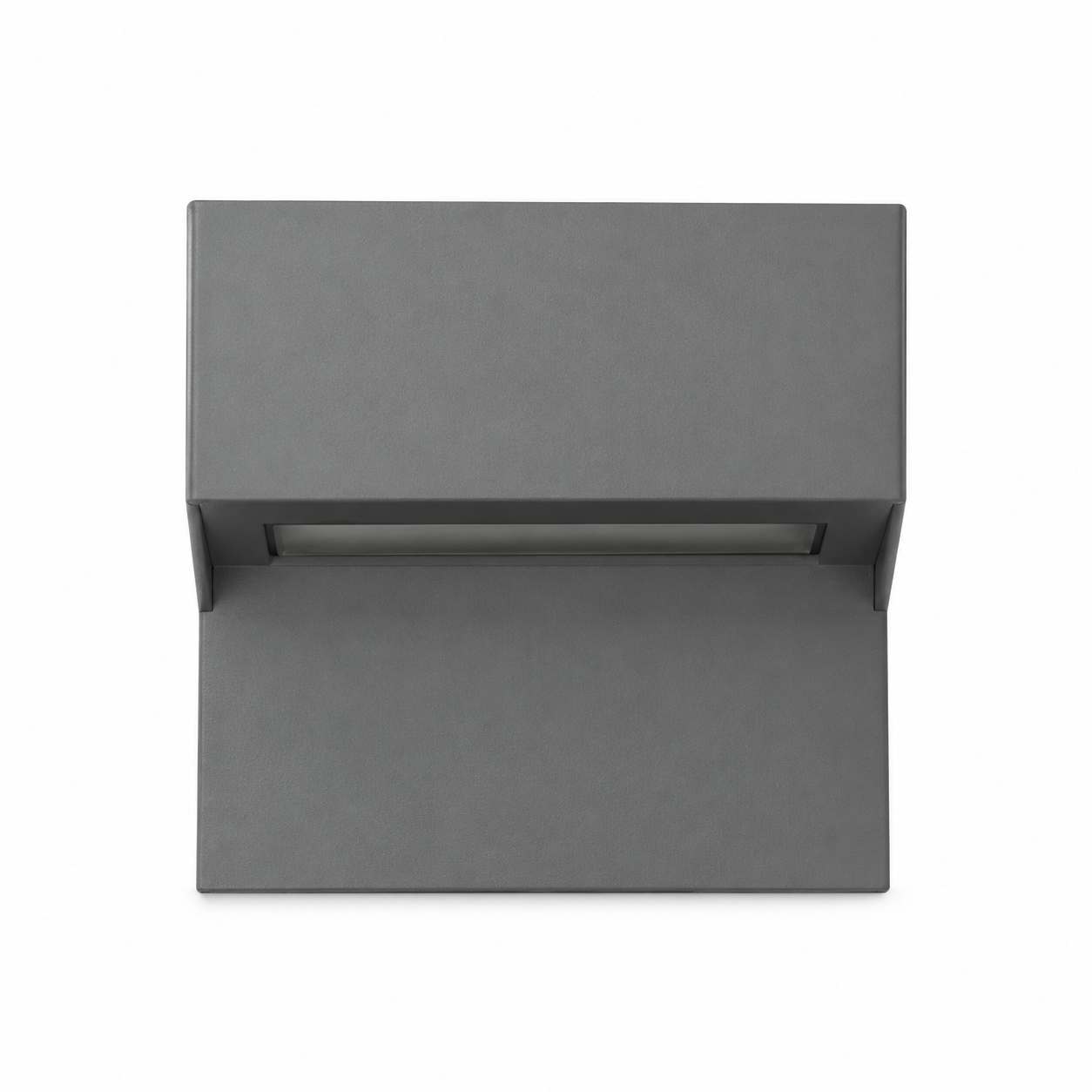

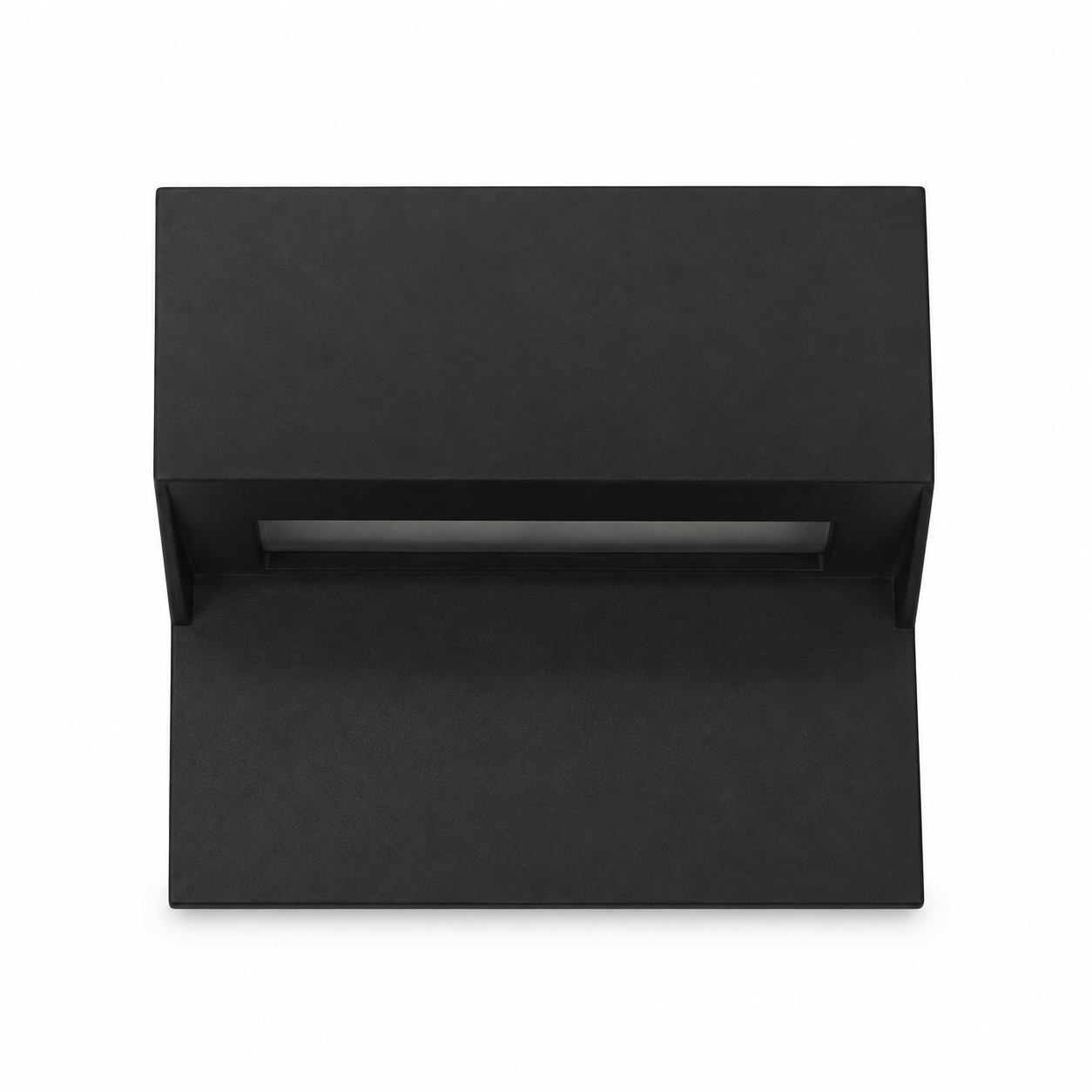

| Finishes | Matte white / Matte black / Matte grey |
| Ingress rating | IP65 |
| Installation | Surface mounted |
Installation
Surface-mounted installation
- Mounting method
- Surface mounting
- Wall cut-out
- Not required
- Input voltage
- 110–240 V
Isolate the supply
Switch off the circuit before preparing the wiring. Electrical connections must be made by a qualified installer.
Prepare the mounting position
Bring the supply cable to the wall fixing position. The luminaire body sits on the wall surface and does not require a recessed opening.
Connect the luminaire
Use the input voltage listed above. Make the electrical connections with the supply isolated and keep the cable clear of the mounting surfaces.
Secure the light
Secure the fixture to the wall using its mounting hardware. Keep the cable clear of the fixing surfaces.
Test the installed light
Restore power and operate the wall switch to check the light.
Request a CE-HMF86 quotation
Send your quantity, finish and colour temperature for pricing and lead time.
