Architectural step lighting
CE-S120Switch Step Light
CE-S120 3 W step light with switch control and recessed wall mounting.
3 W
LED power
IP65
Ingress rating
3
Finishes
Finish: Matte white
Pricing & samples
Request a quotation, sample or technical drawing.
Model CE-S120 Switch controlled SKU HXCE-S120-SW
01 / Applications

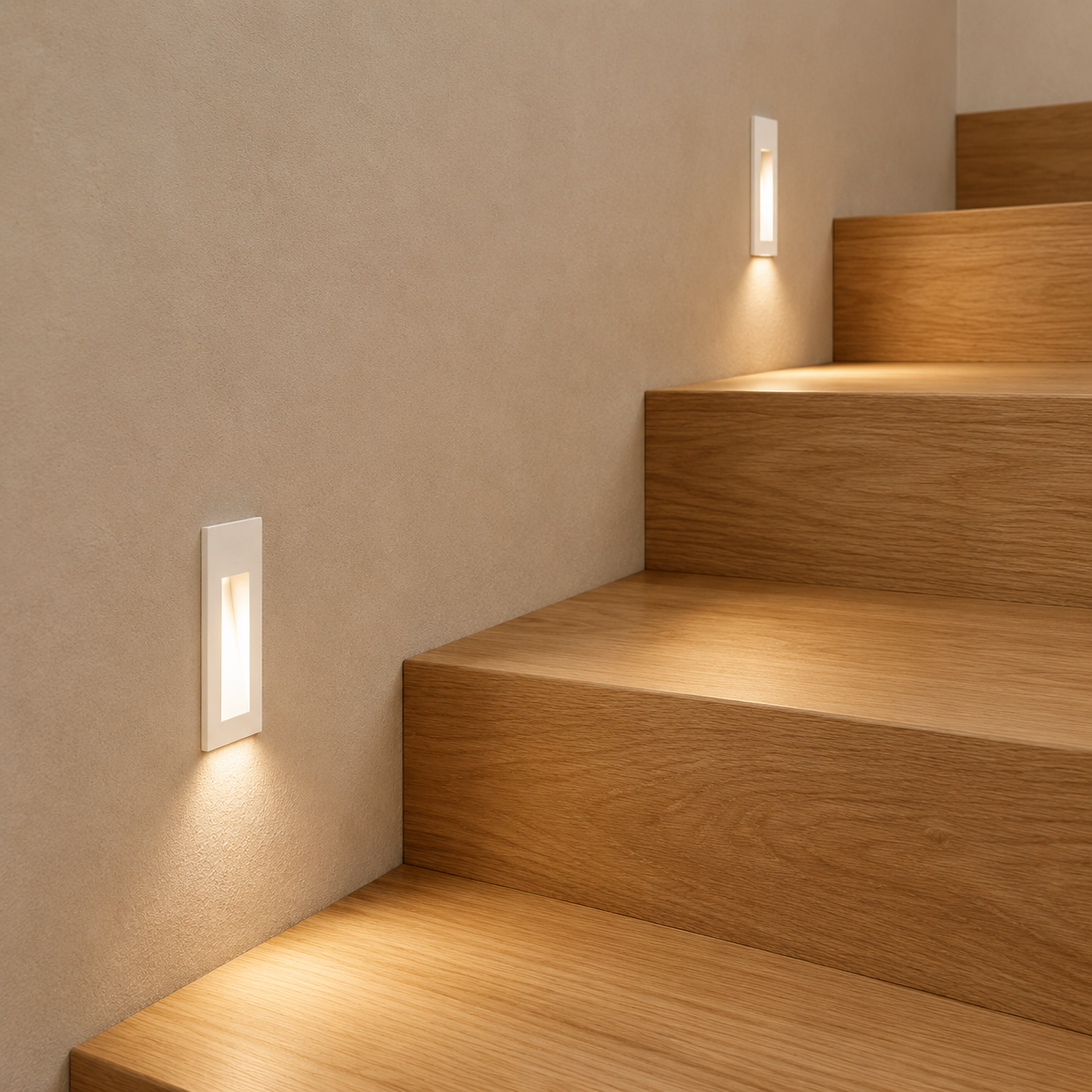

Stairway lighting
Low-level stairway lighting
The recessed housing sits inside the wall, with the faceplate framing the light aperture at the surface.
- Switch controlled
- Recessed wall mounting
02 / Material & finishes
Available finishes
Recessed wall mounting
Technical details
Dimensions & specifications
CE-S120
3 W
LED power
IP65
Ingress rating
80
Colour rendering · CRI
3
Finishes
Product dimensions
Dimensions in mm
Front profile
120 × 45 mm
Side profile
30 mm deep
Wall cut-out
110 × 35 × 40 mm
| Power | 3 W |
|---|---|
| Input voltage | 110–240 V |
| Colour temperature | 3000 / 4000 / 6000 K |
| Beam angle | 60° |
| CRI | 80 |
| Luminous flux | 85–130 lm |
| LED chip | Cree XTE 1 LED |
| Control | Switch controlled |
| Overall dimensions | 120 × 45 × 30 mm |
|---|---|
| Cut-out | 110 × 35 × 40 mm |

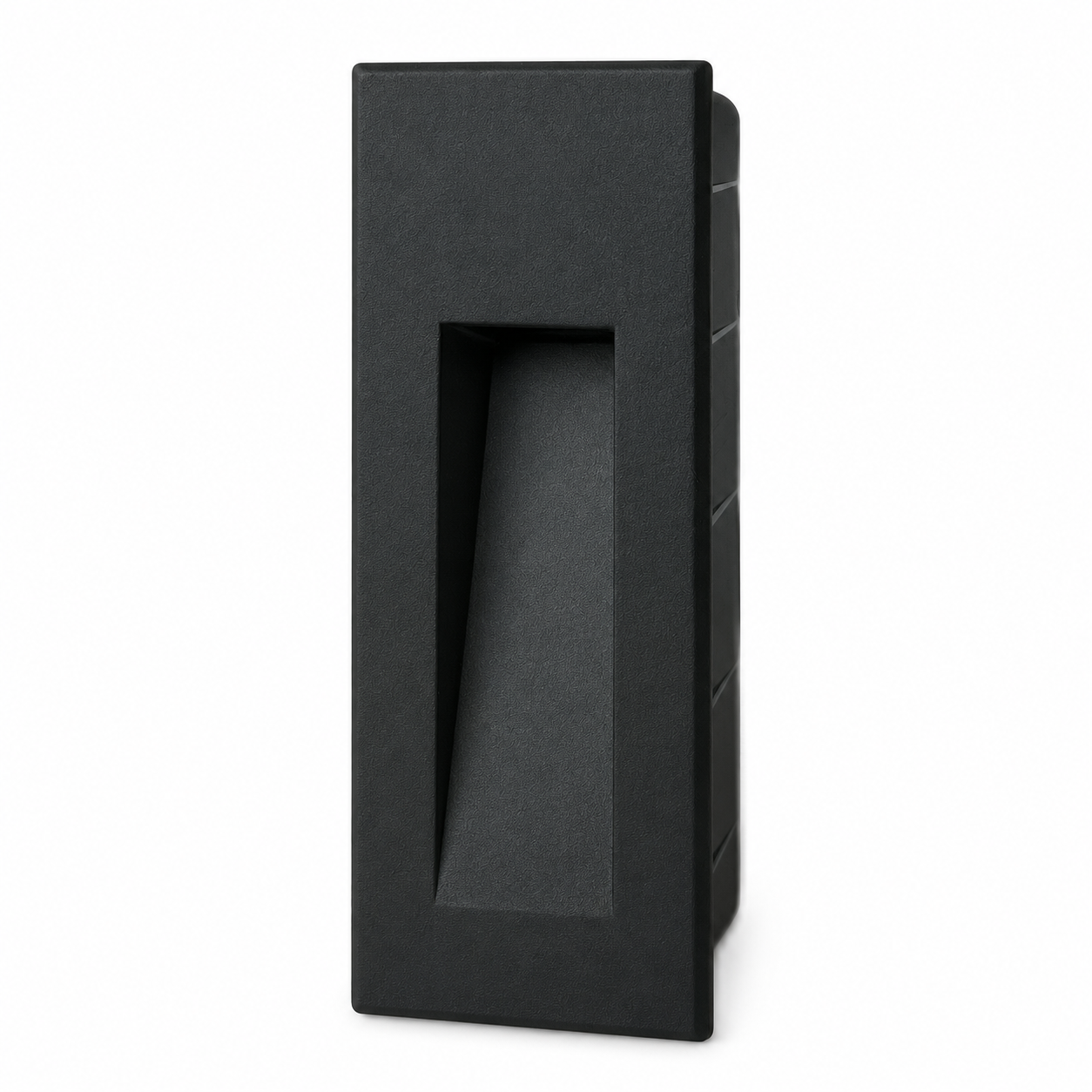

| Finishes | Matte white / Matte black / Matte grey |
| Ingress rating | IP65 |
| Installation | Recessed wall mounting |
| Cable | 15 cm silicone cable |
Installation
Recessed installation
- Mounting method
- Recessed housing
- Wall cut-out
- 110 × 35 × 40 mm
- Input voltage
- 110–240 V
Isolate the supply
Switch off the circuit before preparing the wiring. Electrical connections must be made by a qualified installer.
Prepare the wall recess
Use the wall cut-out dimensions listed above. Provide space for the housing and cable connection behind the finished wall.
Connect the luminaire
Use the input voltage listed above. Make the electrical connections with the supply isolated and keep the cable clear of the mounting surfaces.
Seat the light
Fit the rear housing into the recess and secure the fixture using its mounting hardware. Seat the faceplate against the finished wall without trapping the cable.
Test the installed light
Restore power and operate the wall switch to check the light.
Request a CE-S120 quotation
Send your quantity, finish and colour temperature for pricing and lead time.
